MCP-Universe RL: A Framework for Training MCP Tool-Use Agents via Reinforcement Learning

Ziyang Luo · Yan Yang · Xiangru Jian · Ziji Shi
Xiaoqiang Lin · Jun Hao Liew · Silvio Savarese · Junnan Li

Salesforce AI Research

MCP-Universe RL builds the missing environment- and rollout-orchestration layers once, then reuses them across domains through a shared Model Context Protocol interface.

One framework configuration · Only the task specification changes across domains

The systems gap

Tool-use RL needs more than a policy update

General RL backends optimize the policy, but users still have to solve two recurring systems problems for every new tool-use domain.

Environment orchestration

Hundreds of concurrent trajectories need isolated, reachable environments because shared state can collide and corrupt the reward. Provisioning, health checking, resetting, and recycling those environments is a reusable systems problem.

Rollout orchestration

Long, multi-turn episodes alternate between GPU generation and slow tool calls. Too little overlap leaves the GPU idle; unconstrained concurrency can exhaust host memory with live environments.

Reusable architecture

One MCP interface, three shared layers

Domains differ in their tools and evaluators, while the framework passes data—not domain logic—through the same orchestration and training path.

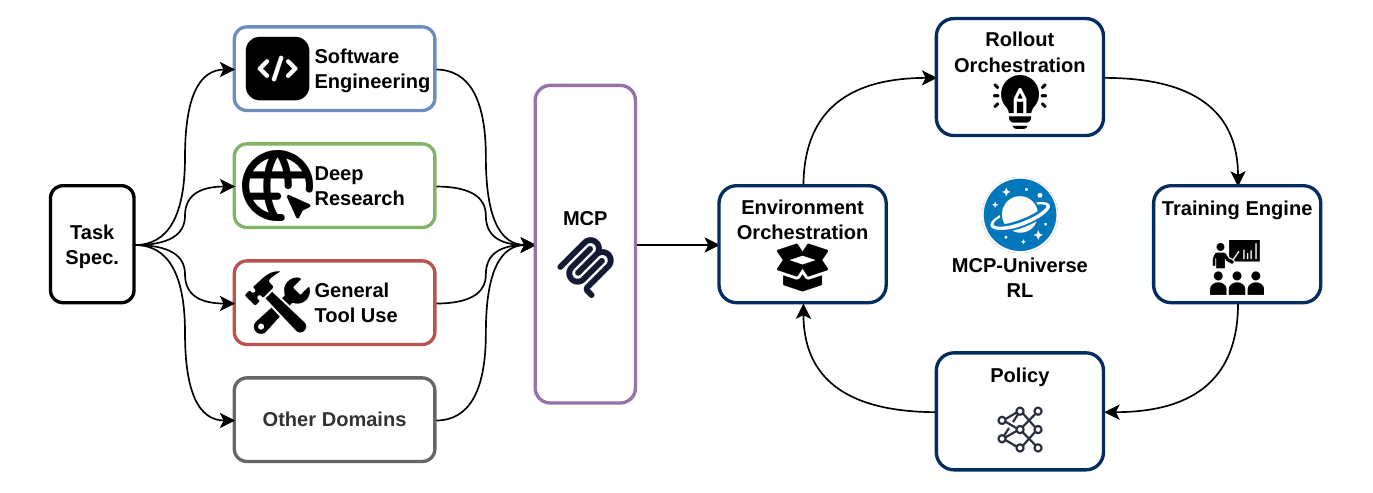

Architecture diagram showing task specifications for software engineering, deep research, and general tool use flowing through MCP into reusable environment orchestration, rollout orchestration, and training engine layers around the policy.
Task specifications expose each domain through MCP. Environment Orchestration, Rollout Orchestration, and the Training Engine are reused while only the domain task specification changes.

Environment Orchestration

Provisions, isolates, checks, resets, and recycles MCP environments over a pluggable container backend, with each environment reached through its own MCP gateway.

Rollout Orchestration

Runs overlapping episodes, records trainable tokens, and invokes the task evaluator so finished interactions become scored trajectories.

Training Engine

Adapts backend-neutral batches to an existing RL backend. The current integrations support veRL and slime, while the backend and algorithm remain configurable.

Rollout pipeline

Acquire → Run → Eval, overlapped

The rollout engine separates stages by resource, then sizes their worker pools independently to keep generation busy without increasing the live-environment budget.

Stage 1

Acquire

Provision or reuse an isolated environment and run any per-instance setup.

Stage 2

Run

Drive the agent over MCP while other trajectories wait on their tool calls.

Stage 3

Eval

Score the finished episode against the live environment, then release it.

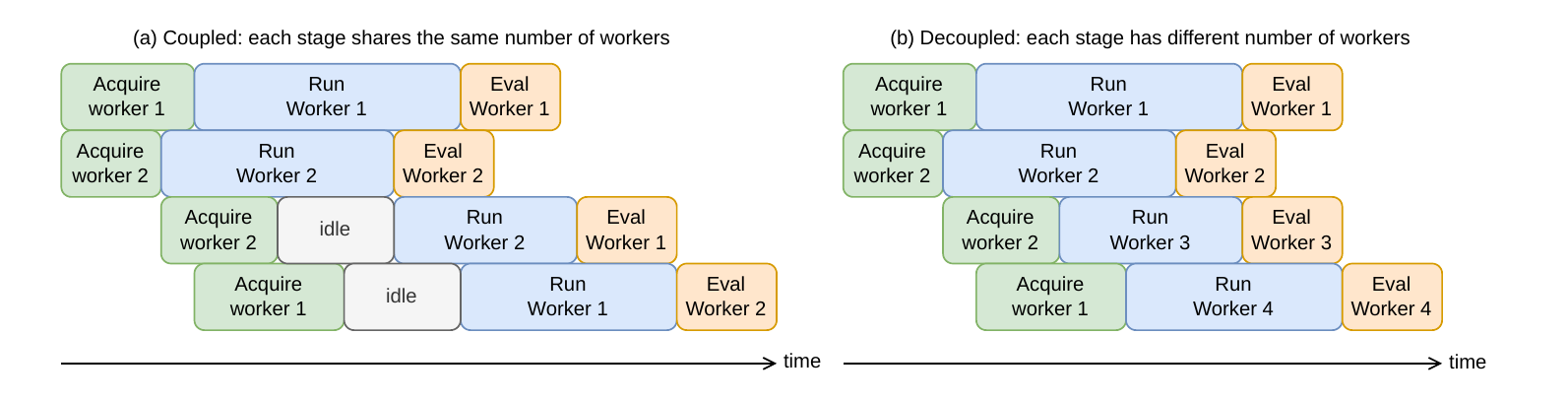

Timeline comparison of coupled Acquire, Run, and Eval workers with idle gaps versus decoupled per-stage concurrency that adds Run workers independently.
Coupled concurrency makes every stage share one worker limit. Decoupled per-stage concurrency adds Run workers independently, overlapping tool waits while the Acquire stage and live-environment capacity remain bounded.

Run workers are set to at least twice the Acquire workers by default because acquisition is host-resource bound while generation is GPU bound.

Cross-domain training

The same framework improves reward in three settings

All runs train the open-weight gpt-oss-20b policy with GRPO. The framework configuration stays fixed while each domain supplies its own task specification, tools, and evaluator.

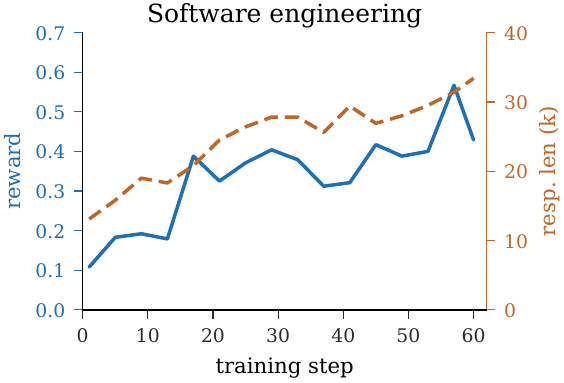

Software engineering training chart showing reward rising from about 0.11 to about 0.43 over 60 steps while response length grows from 13k to 33k tokens, with reward peaking near 0.6.

R2E-Gym

Software Engineering

The agent uses one MCP shell tool to inspect and edit a real repository. Hidden tests run in the same isolated container to produce a binary reward.

Success rate
≈0.11 → ≈0.43
Response length
13k → 33k

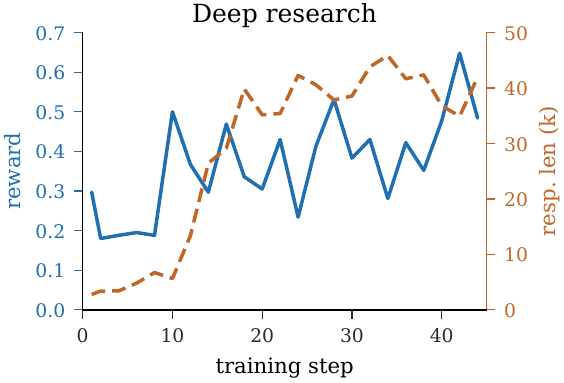

Deep research training chart showing reward improving from about 0.22 to about 0.52 and response length increasing from under 3k to around 40k tokens.

DeepDive

Deep Research

A ReAct agent searches and reads the open web through Google Search and Jina Scrape MCP servers, then an evaluator scores its final answer against the reference.

Success rate
≈0.22 → ≈0.52
Response length
<3k → ≈40k

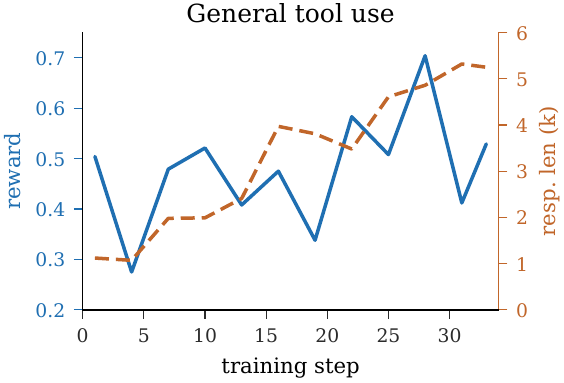

General tool use training chart showing reward moving from about 0.48 to about 0.55 and response length increasing from 1k to over 5k tokens.

AgentWorldModel-1k

General Tool Use

The agent acts across code- and database-backed applications over MCP, while deterministic SQL or code verifiers inspect the resulting application state.

Success rate
≈0.48 → ≈0.55
Response length
1k → >5k

These experiments test framework reuse across substantially different environments and reward checks; they are not claims of state-of-the-art benchmark performance.

Systems evidence

More useful work from the same live-environment budget

2.8× rollout throughput
≈2× end-to-end throughput

On the software-engineering workload, decoupling Run concurrency from Acquire concurrency raises rollout throughput from 147 to 410 tokens per second while the Acquire stage and live-environment count stay fixed.

At matched concurrency, fully asynchronous GPU placement improves training throughput from 3.1 to 6.3 steps per hour and reduces time per step from 1,164 to 572 seconds—approximately 2× faster than colocated placement. It is one-step off-policy, using trajectories at most one step stale.

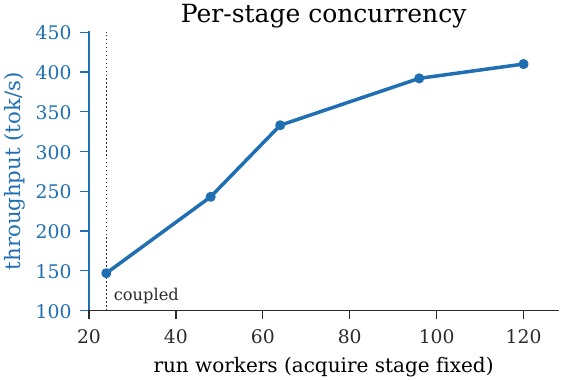

Per-stage concurrency line chart showing rollout throughput increasing from 147 to 410 tokens per second as Run workers increase from 24 to 120 while Acquire workers stay fixed.
Per-stage concurrency on the software-engineering workload. Acquire stays at 24 workers and the live-environment capacity stays at 120 as Run workers increase.
Open source

Build on MCP-Universe RL

MCP-U RL is released as open source under the Apache-2.0 license. The release includes the three reusable layers and runnable configurations for software engineering, deep research, and general tool use.

View the repository
